Test 3: It works... most of the time

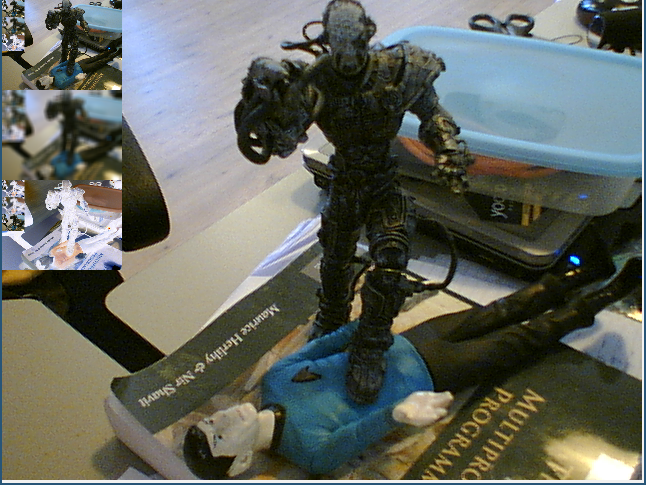

In the third test the source of classes is given. You are asked to create a program similar to the given screenshot below:

As you can see the application captures from a camera, displays this in a window and also displays three thumbnails of the same video in the corner.

Sample classes are given in the example below:

import sphof
from sphof import LeadActor, Actor
import cv2
import numpy as np

class OpenCVActor(Actor):

    def setup(self):
        self.register_int("img_in", 0, "rs")
        self.register_int("img_out", 0, "re")

    def send_img(self, img, ID):
        """
        Sends the image as a signal to any subscribers using the 'imgID'
        emitter. The canvas is reset after the image is sent!
        """
        imgID = id(img)
        assert(imgID not in sphof.shared_ns)
        sphof.shared_ns[imgID] = img
        self.emit_signal(ID, imgID)

    def get_img_from_id(self, imgID):
        """
        Get the image from the given imgID
        """
        return sphof.shared_ns.pop(imgID)

    def resize(self, img, width, height):
        return cv2.resize(img, (width, height))

    def invert(self, img):
        return 255-img

    def to_hsv(self, img):
        return cv2.cvtColor(img, cv2.COLOR_BGR2HSV)

    def blur(self, img):
        kernel = np.ones((5,5),np.float32)/25
        return cv2.filter2D(img,-1,kernel)

    def on_peer_signaled(self, peer, name, data):
        imgID = self.get_value("img_in")
        img = self.get_img_from_id(imgID)
        img_s = self.resize(img, 120, 90)
        self.send_img(img_s, "img_out")


class CVCapLeadActor(LeadActor):

    def setup(self):
        self.add_actor(OpenCVActor("CVActor"))
        self.video_capture = cv2.VideoCapture(0)
        #self.video_capture.set(cv2.CAP_PROP_FRAME_WIDTH, 320)
        #self.video_capture.set(cv2.CAP_PROP_FRAME_HEIGHT, 240)
        #self.video_capture.set(cv2.CAP_PROP_FPS, 15)
        self.frame = None
        self.thumb = None
        self.register_int("imgID_out", 0, "re")
        self.register_int("thumb_in", 0, "rs")
        cv2.startWindowThread()
        cv2.namedWindow('Video')
        self.cap_success = False

    def update(self):
        self.cap_success, self.frame = self.video_capture.read()
        if self.cap_success:
            self.send_img(self.frame, "imgID_out")

    def draw(self):
        if self.thumb != None:
            self.frame[0:90, 0:120] = self.thumb
            cv2.imshow('Video', self.frame)

    def send_img(self, img, ID):
        """
        Sends the image as a signal to any subscribers using the 'imgID'
        emitter. The canvas is reset after the image is sent!
        """
        imgID = id(img)
        sphof.shared_ns[imgID] = img
        self.emit_signal(ID, imgID)

    def on_peer_enter(self, peer, name, headers):
        if name == "CVActor":
            self.signal_subscribe(self.uuid(), "thumb_in", peer, "img_out")
            self.signal_subscribe(peer, "img_in", self.uuid(), "imgID_out")

    def on_peer_signaled(self, peer, name, date):
        if name == "CVActor":
            self.thumb = sphof.shared_ns.pop(self.get_value('thumb_in'))

    def stop(self):
        self.video_capture.release()
        cv2.destroyAllWindows()
        super(CVCapLeadActor, self).stop()


if __name__ == "__main__":
    lead_actor = CVCapLeadActor("CVCaptureActor")
    lead_actor.run()

Now try to create more thumbnails of the video.

Note

What is the difficulty in this program? What are best approaches? It is normal to end up in discussion in this assignment.
